SHENZHEN DANNICE MACHINERY CO.,LTD.CHINA
Shenzhen Dannice Machinery Co., Ltd. is attached to Tanwan Dannice Group which set up in 2002 with its head office in Taiwan. Our group mainly deals with research and production of Industrial refrigeration machines and peripheral auxiliary cooling equipment of injection molding machines by bringing in German high technology. In order to satisfy the needs of the market, Shenzhen Dannice Machinery Co., Ltd. was founded on 2005 in Shenzhen SEZ, southeast China Mainland. Our company is a high-tech enterprise which concentrates on research and development, design, production and sales and after-sales service. We mainly produce industrial chillers, oil coolers,die heaters, dehumidifiers, cold storage units, ultra-low temp water cold machines, air cold machines, electroplating water chillers, screw freezers, cold-hot amphibious temp control machines, laser cold machines and other high-tech equipment.
Specifications

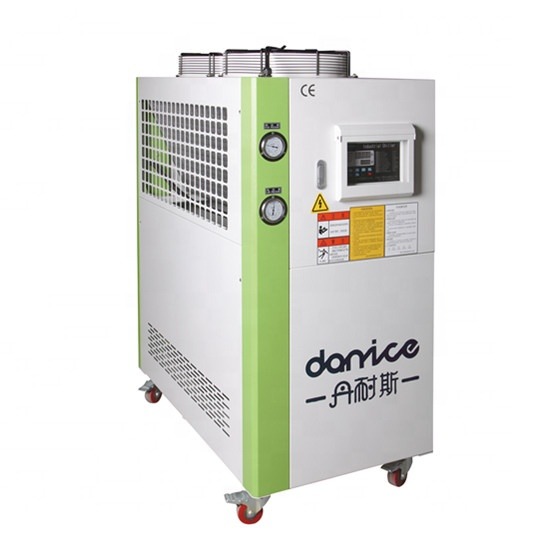

Model | DNC-5A | |||
nominal cooling capacity | kcal/h 50HZ/60HZ | 11988/14386 | ||
Kw 50HZ/60HZ | 13.94/16.73 | |||
Max power consumption | kw | 5.75 | ||
Full load | Amp | 13.8 | ||
power source |
| 3PH - 380V/415V - 50HZ /60NZ 3PH -200V/220V - 50HZ /60NZ | ||
refrigerant | type |
| R22/R407c/134a/404A/410A | |
control |
| Capillary/external balance of thermal expansion valve | ||
compressor | type |
| hermetic scroll/Piston | |
power | kw | 4.55 | ||
condenser | type |
| Efficient aluminum finned copper sleeve+low noise external rotor fan | |
air volume | m3/h | 5000 | ||
fan motor | kw | 0.19×2 | ||
evaporator | type |
| Tank coil/Dry shell and tube /Stainless steel plate evaporate | |
Tank volume | L | 60 | ||
coolant flow | m3/h | 2.4 | ||
inlet and outlet connection(BSP) | inch | 1 | ||
Pump | Power | Kw | 0.75 | |
Max flow rate | m3/h | 8.1 | ||
Max head | M | 30 | ||
safety devices | Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection | |||
dimension | mm | 1150*560*1215 | ||
weight | kg | 185 | ||
