特徴

仕様

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction worksÂ , Food & Beverage Shops, Advertising Company

Condition: New

Temperature: +10â„ƒ ~ -5â„ƒ

Voltage: 220V-380V

Power: 50/60HZ

Dimension(L*W*H): Customized

Weight: 500 KG

Warranty: 1 Year

Key Selling Points: Sustainable

Compressor brand: Copeland, Bitzer, Bitzer/Copeland

Panel Thickness: 100mm, 200mm, 120mm, 75mm, 50mm, 150mm

Cooling Capacity: 20ton

Machinery Test Report: Not Available

Video outgoing-inspection: Not Available

Warranty of core components: 3 months

Core Components: Pressure vessel

Usage: Cold Storage, Fresh Keeping/Freezing

Feature: Solar

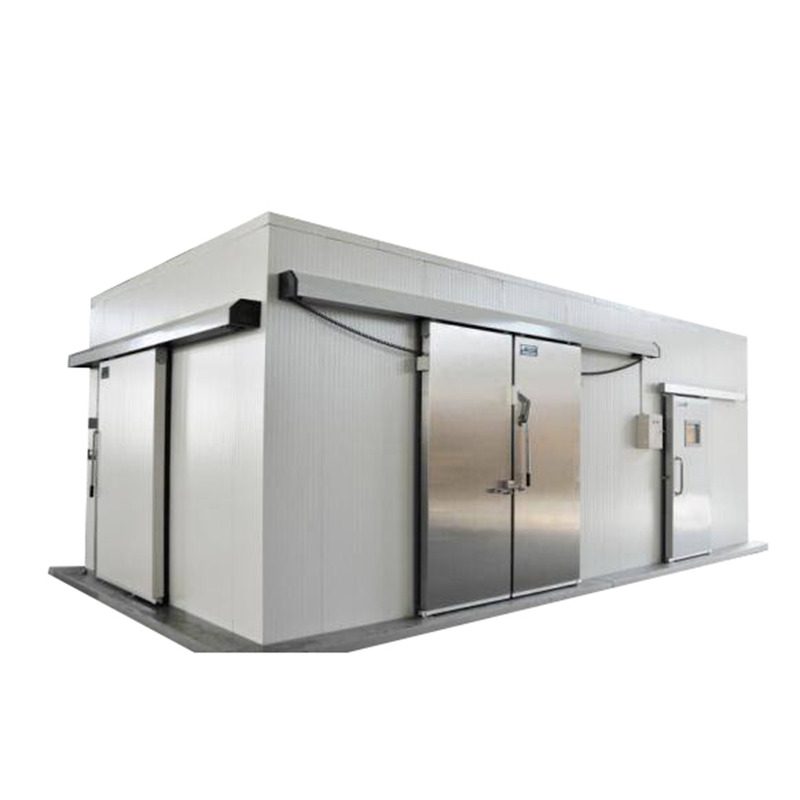

Product name: Hot sale Chiller room for Dairy products

Tem. range: +10â„ƒ ~ -5â„ƒ

Cold room doors: Hinged / Sliding / Swing / Lifting doors

Cooling Type: Water Cooled/ Air Cooled/ Evaporative Cooled

Cold room panel: PUR/PUF/PIR Panels

Evaporator Case: PPGI/Stainless Steel/ Aluminum Box

証明: CE,ISO,CCC,COC,SABER

基本情報

証明: CE,ISO,CCC,COC,SABER

お支払配送条件

Packaging Details: The package is fumigation free plywood case,inside with polyethylene film.The package is strong enough for air or sea transportation Hot sale Chiller room for Dairy products

Supply Ability: 300 Set/Sets per Month Hot sale Chiller room for Dairy products

製品の説明

Company Profile

Jinan Mgreenbelt Machinery Co., Ltd is a water chiller and cold room manufacturer, our main product range include industrial water chiller, cold storage and air compressor equipment. In order to meet the need of different customer, we specialized the main industrial: Plastic industry use water chiller: different capacity and cooling type; Include plastic injection machine water chiller, plastic extruder water chiller, plastic blowing water chiller and etc; Brewery use glycol chiller: outlet temperature can satisfy 0 deg C, -5 deg C, -10deg C or much lower based on your need; Include Beer Chiller, Distillery Chiller, Winery Chiller and etc; Chemical industry chiller: the lowest temperature can be -40 deg C; Chemical And Pharmaceutical Use Chiller, Explosion-Proof Chiller Other industry equipment working cooling.

PRODUCT OVERVIEW

High quality cold room for Dairy products

Whether you are looking for cold rooms, refrigeration condensing units, insulation panels, evaporator air coolers, MGREENBELT is the go- to professional manufacturer.

Mgreenbelt walk-in freezer, typical temperatures for our cold room range from of -18°C to -25°C (0°F To 13°F); walk-in cooler, typical temperature range of -5°C to +20°C (+23°F To +68°F). It can store frozen meat, fish, seafood, chicken, ice cream, vegetables, fruits, dairy products, beverages etc. Walk-in freezer and cooler is staples of logistics warehouse, restaurants, farms, hotels, supermarkets facilities.

FEATURES AT A GLANCE

Cold Room/ cold storage has the following features

1. Nice appearance :The insulation panel and framework are available in dozens of colors which are to be elected in satisfactory harmony with various styles of buildings. 2. Insulation : Polyurethane or polystyrene with low thermal conductivity and high strength is utilized, achieving good insulation performance. 3. Short construction period 4. Fast installation 5. Hygienic conditions of food inside cold stores are up to the standards. 6. Durable building structure, super quality material

No	Item	Data
1	Dimension	Customized
2	Temperature	-15C ~ -35C
3	Cold room door	Sliding door /hinged door
4	Capacity	100 tons
5	Compressor	Bitzer/Emerson/Hanbell etc
6	Insulation panels	PUR/PIR
7	Surface material	PPGI
8	Power	380v/220v/440v as your side

PRODUCT CONFIGURATION

Cold Room Components

The complete set of cold room cold storage includes 4 main parts 1. Cold storage panels 2. Air cooler 3. Condenser unit 4. Accessories

Refrigeration Unit

1).Condenser unit type : open type / box type / monoblock unit
2).Compressor brands: Germany Original Bitzer compressor /American Original Emerson (Copeland) compressor
3).Refrigerant: R404A, R134A, R507C ETC.

Air Cooler/ Evaporator

1). Temperature range : for medium temp/ low temp/ ultra low temp (as you want)
2). Case material : PPGI / Stainless steel / Aluminum steel
3). Fins : Blue fins (hydrophlic foil fins, which is anti-corrosion)
4). Fans : low noise/ high effective

PUR Panel

1) Surface steel : there have 3 types for your reference : PPGI / Stainless steel / Aluminum
2) Thickness(mm): 0.5~1.5mm
3) Width: 960-980mm by 1180mm (or can be customized)
4) Density : 42-44kg/m3
5) Thickness(mm): 50/75/100/120/150/200mm
6) Fireproof : B2/B1 as you want

SUCCESSFUL PROJECT

Cold room cold storage advantage

1. Good fire prevention performance and not melting when burning 2. Wide temperature application range, small contractility even in low temp environment and non fragile. 3. Nontoxic and inodorous, in accord with the state environmental protection requirements cold room cold storage panels thickness usually made according to the room temp, and the sized can be customized. (1).Vegetable, Fruit Storage Cooler (0-5'C) (2).Drinks, Beer Walk in Cooler (2-8'C) (3).Meat, Fish Storage Freezer (-18'C) (4).Medicine Storage Cooler (2-8'C) (5).Medicine Storage Freezer (-20'C) (6).Meat, Fish Blast Freezer (-35'C)

Food factory cold room

Mobile cold room for sale

Logistic cold storage

Project in Australia

Project in Italy

Project in Philippines

Complete Cold Storage Solution

Cold room Freezer Room Cold Storage Blaster Freezer For Meat/Fruits/Vegetables

Temperature : from -35 deg C to +25 deg C

Evaporator, condenser, compressor, panel, door etc

Industrial Water Chiller

Ang industry process cooling solution

For food, fish, milk, beverage etc cooling

Cold water outlet Temperature: from 30 deg C to +35 deg C

Function: supply cold water to cooling your process

CERTUFICATIONS

PACKAGE & SHIPPING

FAQ

As a professional cold storage solution provider, we will make different cols storage solution according to your working need, so if you can not choose the right model, please kindly inform us the follows details:

1. What's the cold room dimension need? L*W*H (mm)

2. What's the product capacity you put in per hour? may you use Ton?

3. What's the temperature input ? and what's the temperature you need to freezing to?

4. What's the power supply need? Phase/voltage/frequency

5. What's your ambient temperature as usual?

We can send you the complete cols storage solution, with full technical details and quotation.

How to get a water chiller proposal and price?
1. You can click " Chat Now" Talk with our sale directly, we will reply you in immediately.

2. You can click " Contact" send inquiry to us, we will reply you within 1 hour.
3. You can send us message by whatsapp / wechat: +86-17615806760, or email by sales05@mgreenbelt.com, we can reply you in immediately.
